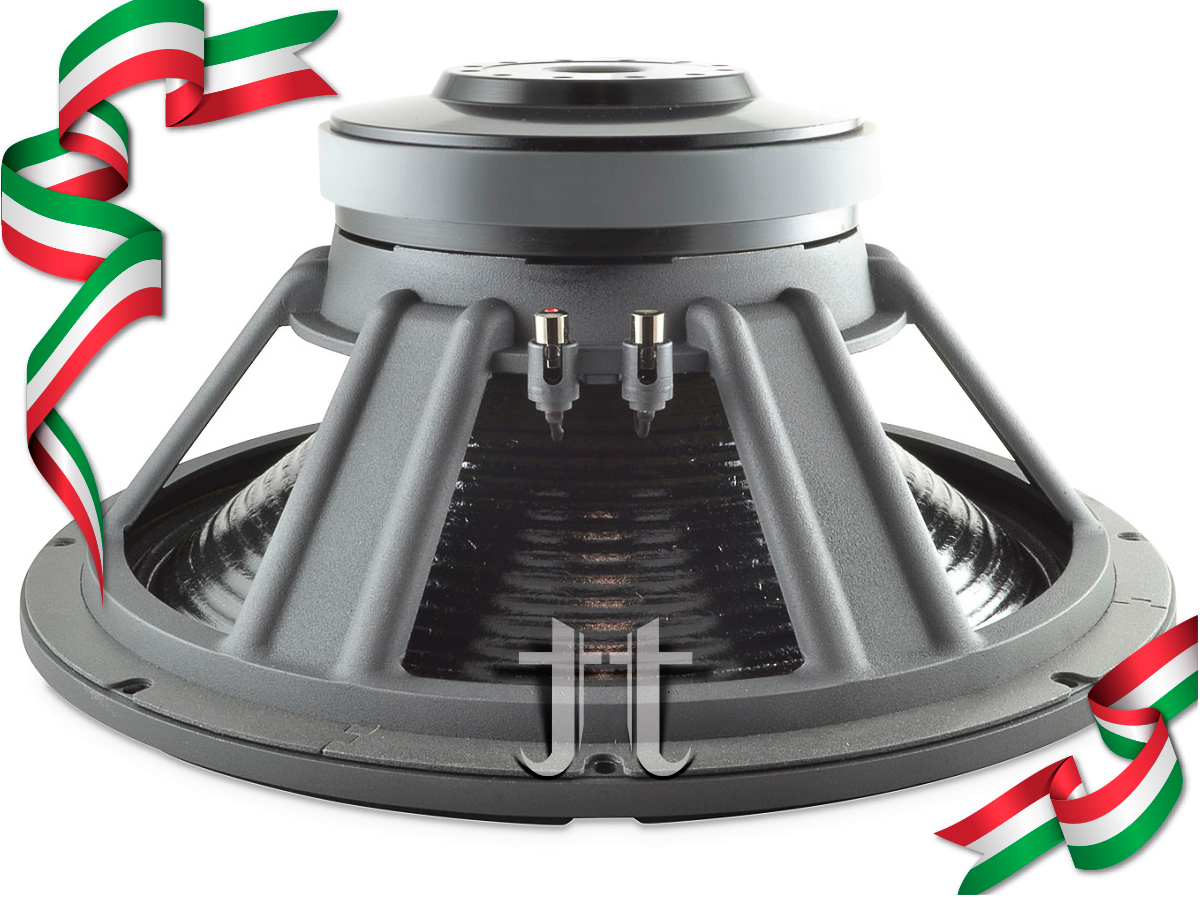

Subwoofer Profesional Ferritta 18 FP4 18 " 2400 Wts
Modelo : | C. Interno : Z008394 | Nº Vistas : 864 |
Características de Subwoofer Profesional Ferritta 18 FP4 18 " 2400 Wts
GENERAL SPECIFICATIONS | ||
| Nominal Diameter | : | 463 mm / 18 in |
| Nominal Impedance | : | 8 Ω |
| Rated Power AES | : | 1200 W |
| Continuos Program Power | : | 2400 W |
| Sensitivity @ 1W/1m | : | 96.3 dB |
| Voice Coil Diameter | : | 100 mm (4") |
| Voice Coil Winding Depth | : | 27 mm |
| Magnetic Gap Depth | : | 12 mm |
| Flux Density | : | 1.05 T |
| Magnet Weight | : | 3300 g |
| Net Weight | : | 13.0 Kg |
CONSTRUCTIVE CHARACTERISTICS | ||
| Magnet Type | : | Ferrite |
| Basket Material | : | Aluminium Die-Cast |
| Voice Coil Winding Material | : | Copper |
| Voice Coil Former Material | : | Fiberglass |
| Cone Material | : | Paper |
| Cone Treatment | : | Total Waterproof Treatment |
| Surround Material | : | Treated Cloth |
| Dust Dome Material | : | Solid Paper |
MOUNTING INFORMATION | ||
| Overall Diameter | : | 462 mm |
| Baffle Cutout Diameter | : | 417 mm |
| Mounting Holes | : | 8 holes 6.5×9 on Ø441 mm |
| Total Depth | : | 209.5 mm |
THIELE/SMALL PARAMETERS | ||
| Re | : | 5.2 Ω |
| Qms | : | 6.46 |
| Qts | : | 0.43 |
| Cms | : | 76 µm/N |
| Vas | : | 147.3 l |
| X max | : | +/- 8.0 mm |
| N | : | 1.67% |
| Fs | : | 38.0 Hz |
| Qes | : | 0.47 |
| Mms | : | 229.2 g |
| Bxl | : | 24.60 Tm |
| Sd | : | 1164.2 cm² |
| X var | : | +/- 10.0 mm |
| Le (1KHz) | : | 1.85 mH |
