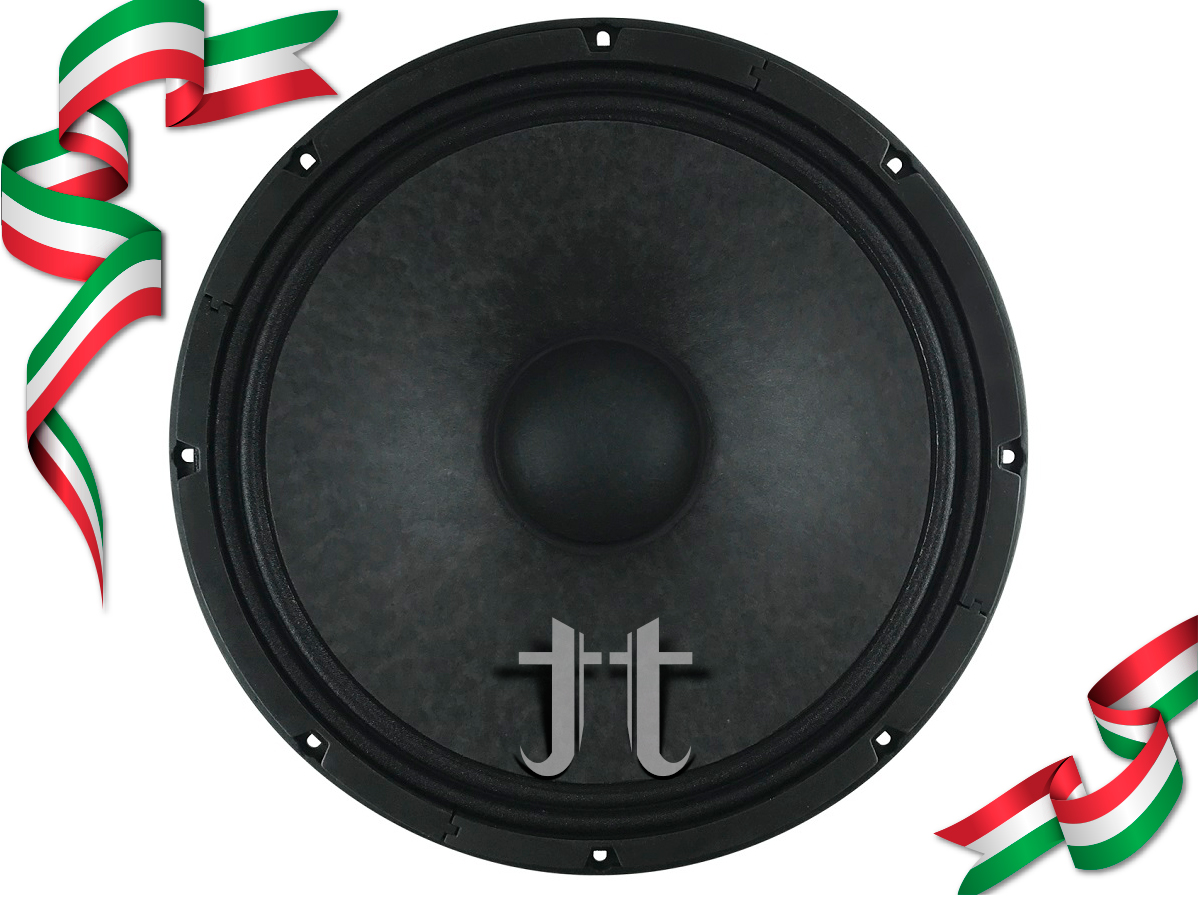

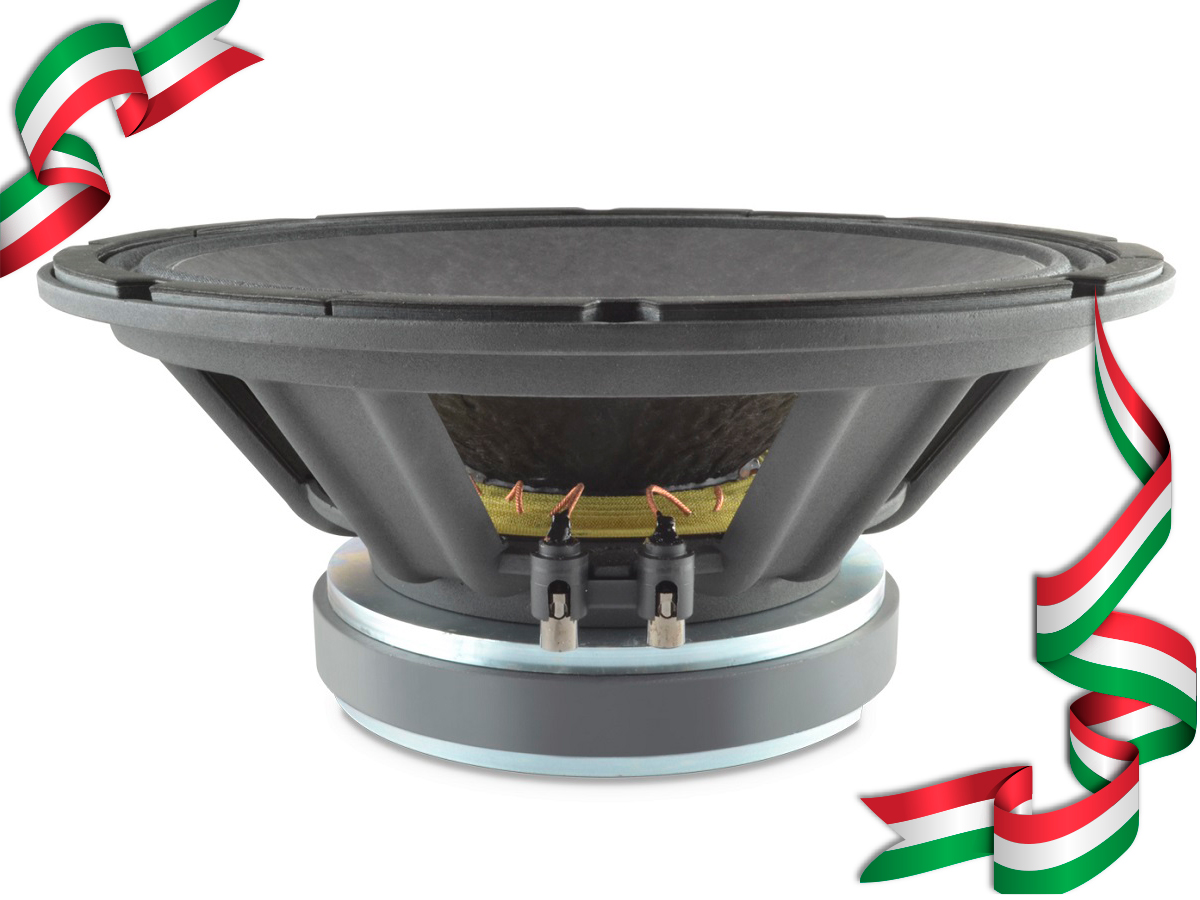

15 PF 4 CP Woofer 1400 W Ferrita 15 Premium
Modelo : | C. Interno : Z008321 | Nº Vistas : 966 |
Características de 15 PF 4 CP Woofer 1400 W Ferrita 15 Premium
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | : | 389 mm / 15 in |
| Nominal Impedance | : | 8 Ω |
| Rated Power AES | : | 700 W |
| Continuos Program Power | : | 1400 W |
| Sensitivity @ 1W/1m | : | 99.1 dB |
| Voice Coil Diameter | : | 100 mm (4") |
| Voice Coil Winding Depth | : | 21 mm |
| Magnetic Gap Depth | : | 10 mm |
| Flux Density | : | 1.30 T |
| Magnet Weight | : | 3300 g |
| Net Weight | : | 12.1 Kg |
| CONSTRUCTIVE CHARACTERISTICS | ||
| Magnet Type | : | Ferrite |
| Basket Material | : | Aluminium Die-Cast |
| Voice Coil Winding Material | : | Copper |
| Voice Coil Former Material | : | Kapton |
| Cone Material | : | Paper |
| Cone Treatment | : | Humidity Resistant Pulp |
| Surround Material | : | Treated Cloth |
| Dust Dome Material | : | Solid Paper |
| MOUNTING INFORMATION | ||
| Overall Diameter | : | 388 mm |
| Baffle Cutout Diameter | : | 355 mm |
| Mounting Holes | : | 8 holes 6×9 on Ø371 mm |
| Total Depth | : | 169.0 mm |
| THIELE/SMALL PARAMETERS | ||
| Re | : | 5.1 Ω |
| Qms | : | 7.42 |
| Qts | : | 0.25 |
| Cms | : | 116 µm/N |
| Vas | : | 120.4 l |
| X max | : | +/- 7.0 mm |
| N | : | 3.12% |
| Fs | : | 41.0 Hz |
| Qes | : | 0.26 |
| Mms | : | 130 g |
| Bxl | : | 25.90 Tm |
| Sd | : | 855.3 cm² |
| X var | : | +/- 10.0 mm |
| Le (1KHz) | : | 1.48 mH |
